Leo WIDE L is a version of standard Leo bed, where beds mattress platform width is increased (without changing main construction).This solution is perfect for those patients who expect more comfort.
Product overview:
Basic Technical Parameters:
| Overall width x length | 127 x 208 cm |
| Mattress platform width x length | 110 x 200 cm |
| Height adjustment | ~ 31- 78 cm |

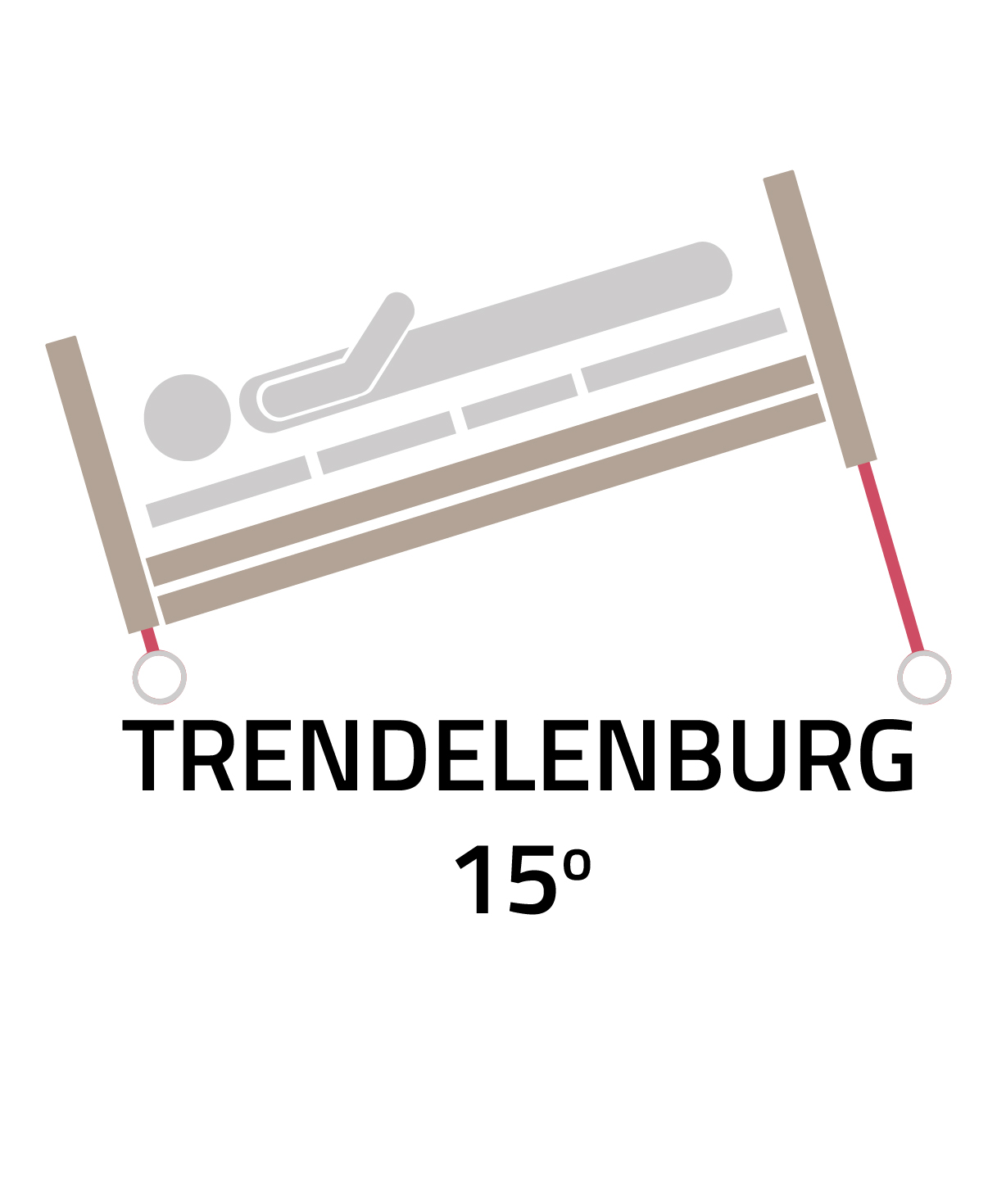

| Trendelenburg angle | 15 |

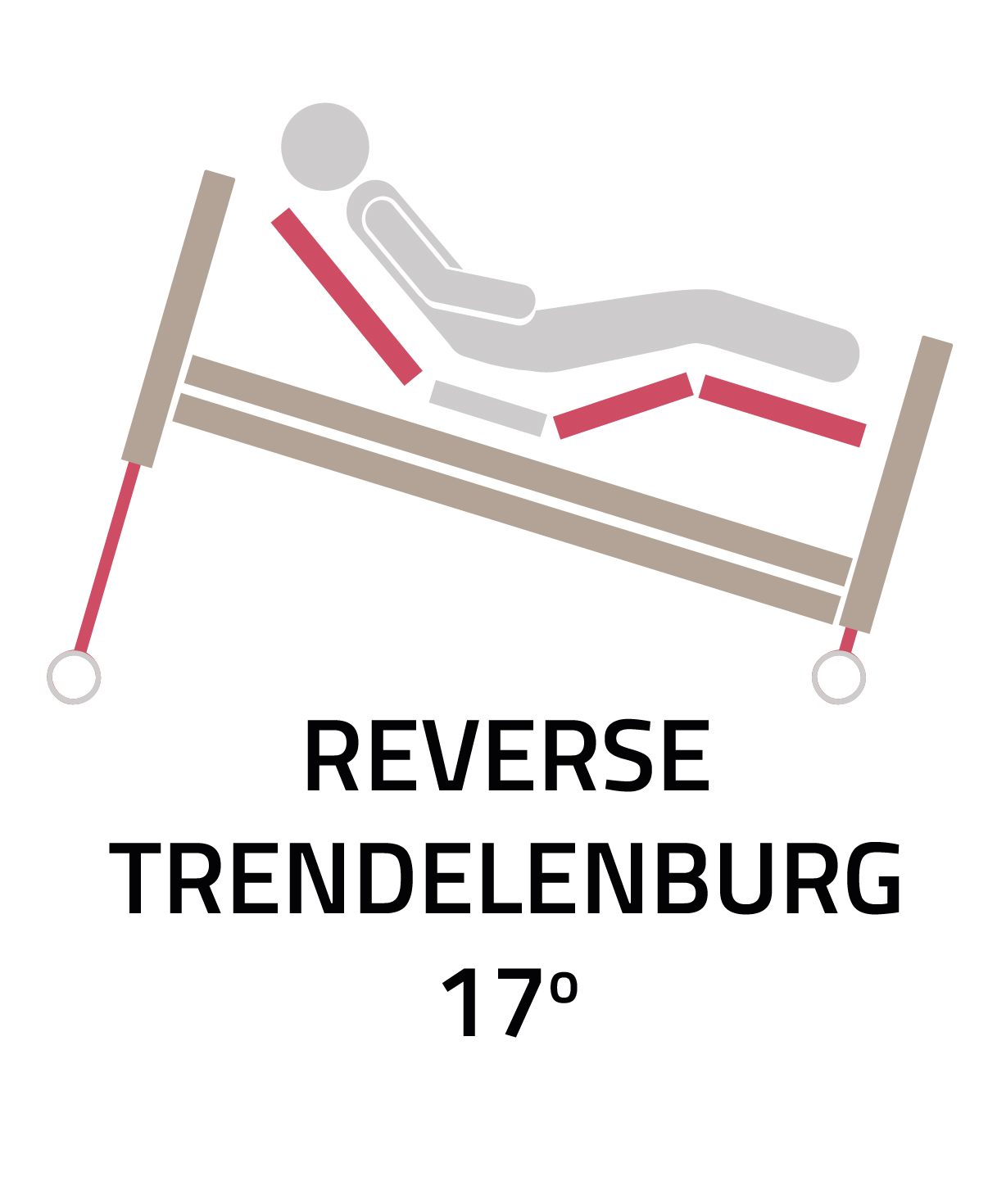

| Reverse Trendelenburg angle | 17 |
Increased bed width: 110cm for mattress platform and 127cm overall
Modern pantograph construction - we use a unique pantograph construction to give a flexibility and modern look to the bed. All the electrical items like actuators and control box are hidden under the mattress platform and are not visible for the user.
Wide height adjustment – construction used in Leo bed allows to achive very wide height adjustment range. This solution combines standard bed with it`s low version. Solid bed frame gives you a real stability and at the same. Lowest position ~31cm
Four-section mattress platform - made of metal slats for easy disinfection.
Max. working load - 215 kg
Easily removable bed ends - made of laminated board and solid beech wood. Bed ends are independent form construction and due to it we can ofer detachable foot/head ends. Available options:
 |
 |
|

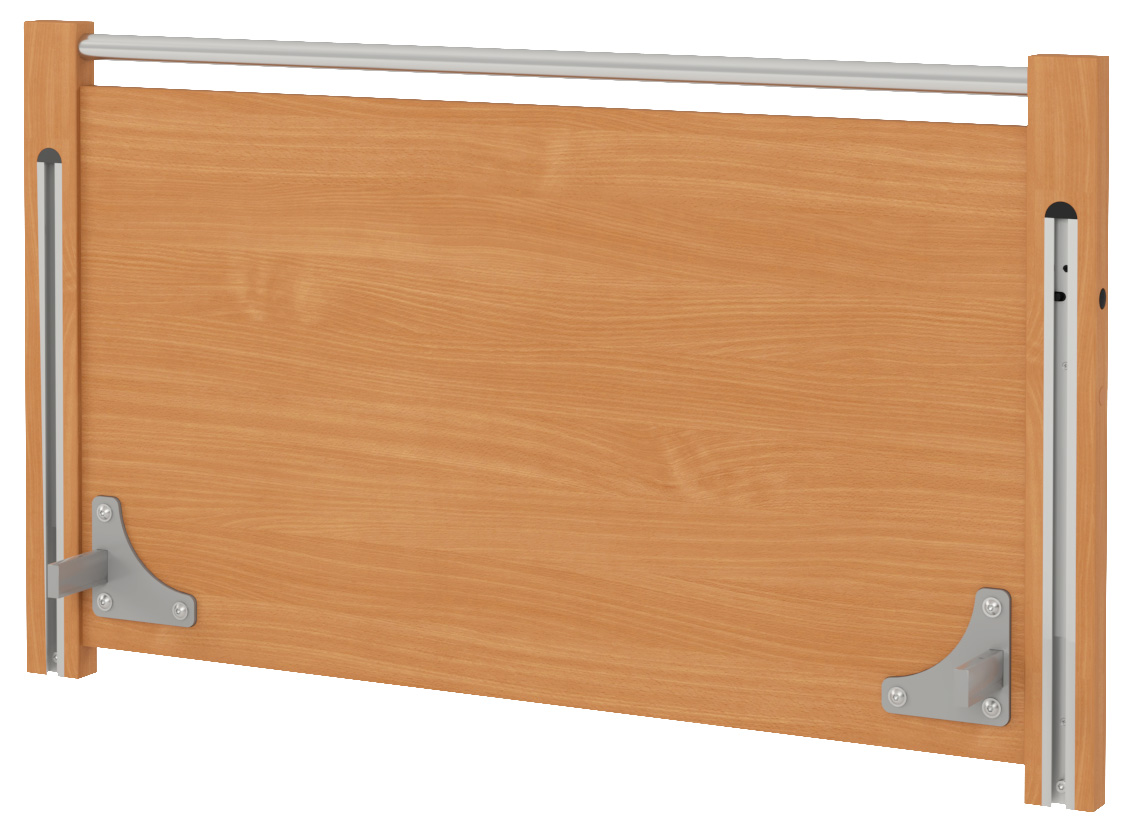

L-01 Wooden bed end with chrome tube |

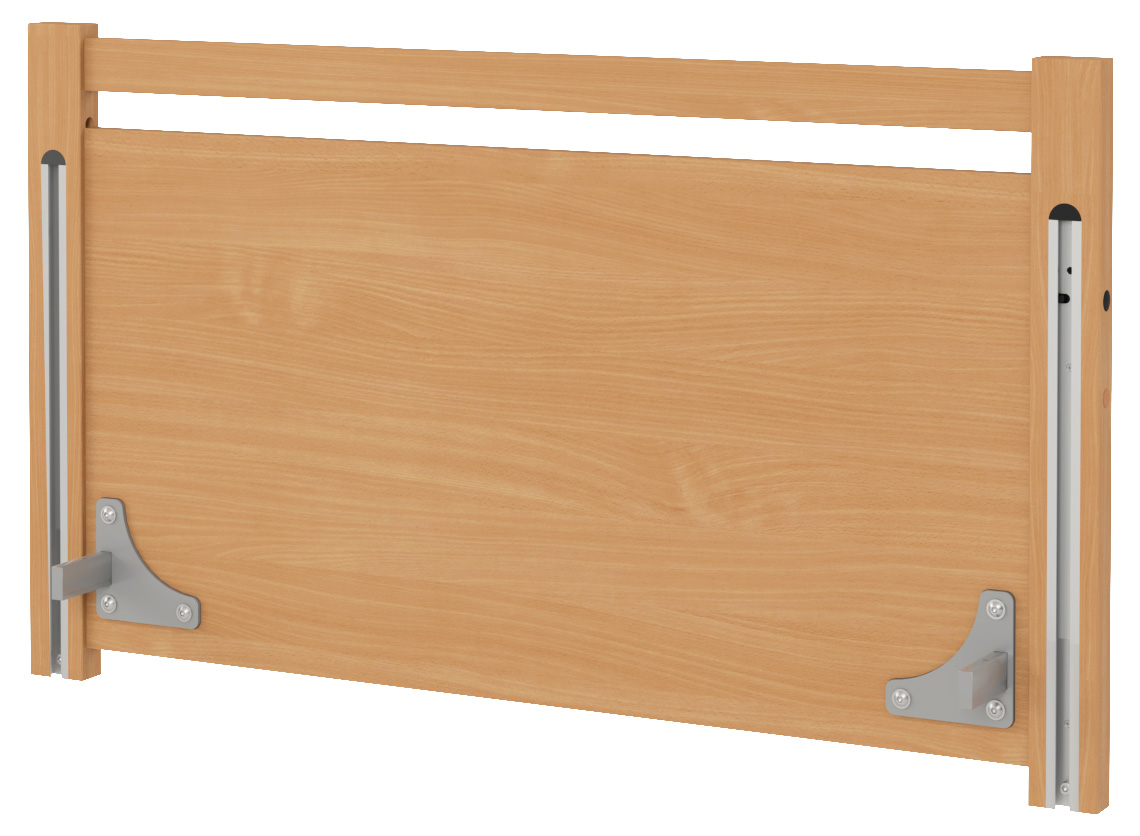

L-02 Wooden bed end with wooden slat |
Bed control The ergonomic shape of the hand controller ensures comfortable operation and easy access to all bed adjustment functions.
The controller is equipped with a lockout feature for bed movements, operated by a key.

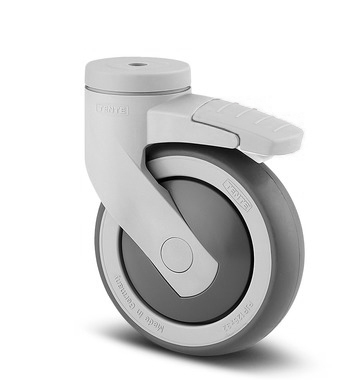

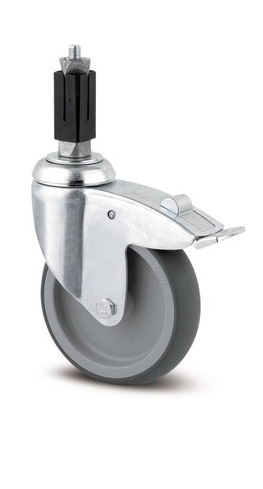

Castors. We offer plastic and metal wheels with a choice of diameter. For wheels with a diameter of 50mm, there is an option to order a concealed variant. Additional options that enhance the mobility of the bed include individual wheel locking (standard), axial locking, and central locking.
 |
 |
 |
|
Standard: Housing: steel, Wheel material: polypropylene with thermoplastic rubber coating. |
Optional:: Plastic castor with choice of diameter |

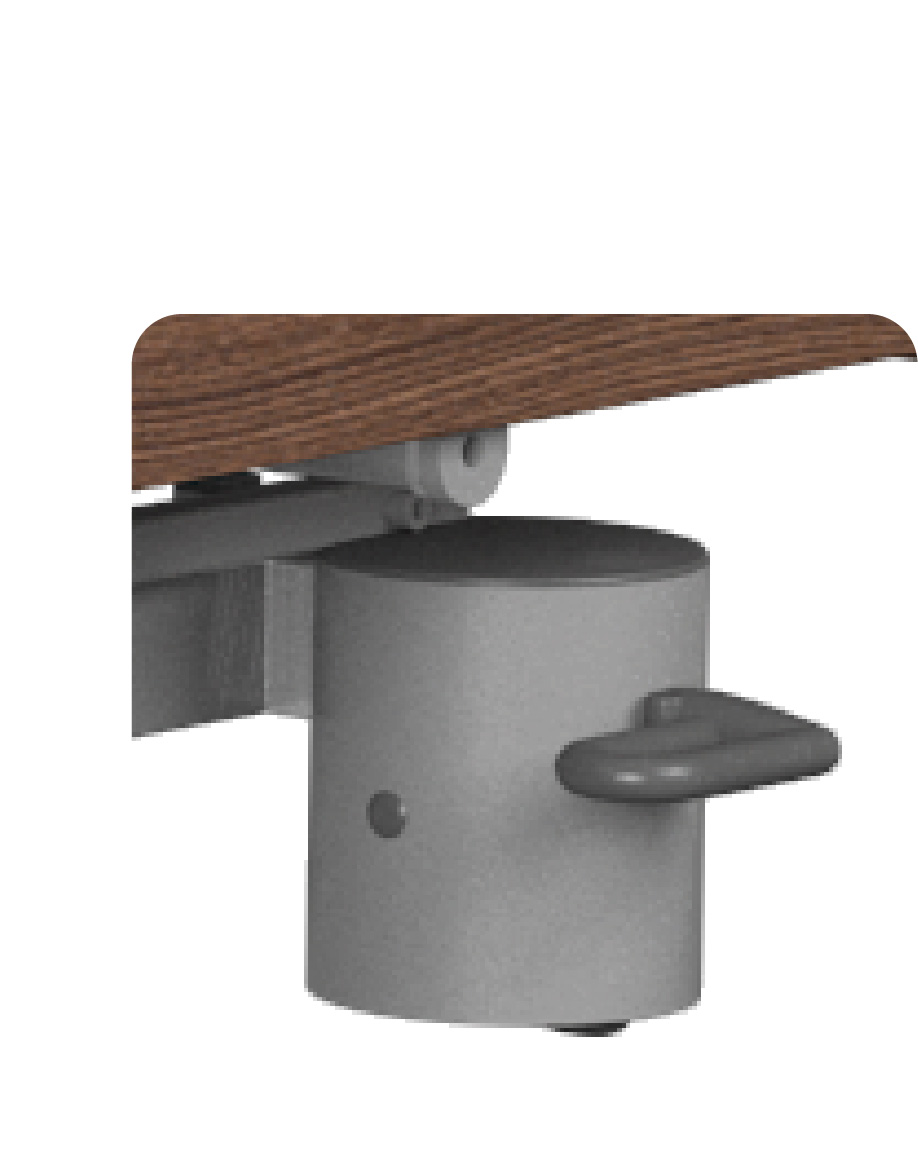

Optional: For wheels with 50mm diameter -conccealed variant availiable. |
| WOOD - Standard colours: Avilabe in constant sale |
WOOD – Non-standard colours: Additional charge for custom colour: +15% |
||||
BEECH |
LIGHT OAK |
DARK WALNUT CARAVAGGIO |
OAK SONOMA TABAC |
OAK SONOMA LIGHT |
OAK GOLDEN CRAFT |
THE IMAGE OF THE REHABILITATION BED IS FOR ILLUSTRATIVE PURPOSES ONLY. DETAILS OF FINISH AND EQUIPMENT ARE ALWAYS AGREED INDIVIDUALLY WITH THE SALES
